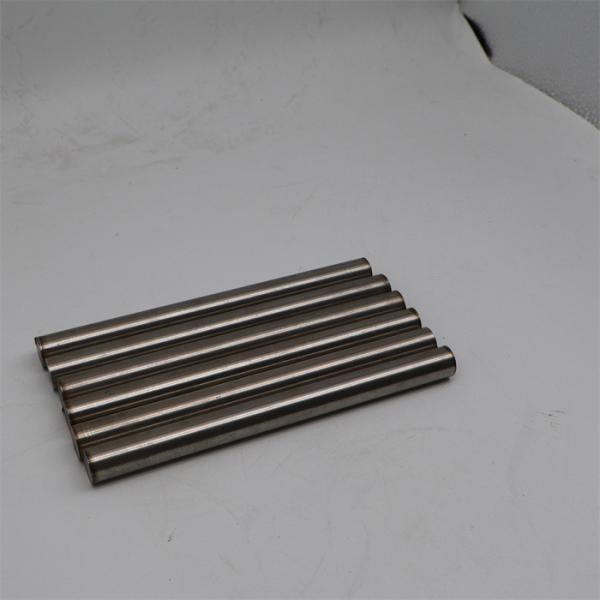

36 Invar Alloy Pernifer 36 ASTM F1684 Iron Nickel Alloy Antenna Components Light Rod

Brand Name : liangru

Model Number : Alloy INVAR 36

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80 TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests' request

Features : Have Very Low Coefficient Of Thermal Expansion, Which Has Good Plasticity And Toughness.

Shape : Wire,Strip,Rod,Tube,Plate

Alloy Type : Iron Nickel Low Expansion Alloy

Raw Materials : NI35-37%，Co3.2-4.2%，Fe Rem

Executive Standard : ASTM

Delivery Status : Soft State

Application : Application: It Is Suitable For High-precision And High-precision Industries That Need To Avoid The Thinning Of Size And Shape Caused By Thermal Expansion

Size : Negotiable

Contact Now

P

Product Description and Application

Invar 36 is also known as Nilo 36,Pernifer 36, ASTM F1684, UNS K93600,

Invar 36 has low coefficient of expansion and good plasticity at -60 ° C to 80 ° C atmospheric temperature variations. It is a special iron nickel alloy with an ultra-low coefficient of expansion. The control of carbon and manganese components is very important. It has a stable low expansion coefficient in a specific temperature range. Invar36 is resistant to corrosion in dry air at room temperature. Corrosion (rust) will occur in other harsh environments, such as humid air.

Applications: bimetallic active layer materials, clamps for measuring instruments, astrotelescope components, optical instruments, metal molds for CFRP, antenna components, shielding frames for FPD, inspection clamps for semiconductor, processing clamps for semiconductor, temperature controller and waveguide.

Process Performance and Requirements

  • Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

  • Product Chemical Composition

Alloy Grade

Chemical Composition(Mass Fraction) %

C

 P S S Se Cu Mn Ni Co Fe

Not more than

Invar 36

 0.05 0.02 0.02 0.3 -- -- 0.20~0.60 35.0~37.0 -- Rem

  • Product Physical Property

Density

 8.1g/cm3

Fusing Temperature

 1430℃

Alloy Grade Sample Heat Treatment Institution

Average Coefficient of Linear Expansion,1/℃

20℃~100℃

 20℃~100℃
Invar 36

The semi-finished sample was heated to 840 ° C ±10 ° C, held for 1 hour, then water quenched. The sample was processed into finished sample, held for 1 hour at 315 ° C ±10 ° C, and cooled with the furnace or air

 ≤1.5 ---

  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe ¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm

36 Invar Alloy Pernifer 36 ASTM F1684 Iron Nickel Alloy Antenna Components Light Rod36 Invar Alloy Pernifer 36 ASTM F1684 Iron Nickel Alloy Antenna Components Light Rod
